If you're passionate about
IT and electronics, like being up to date on technology and don't miss even the slightest details, buy

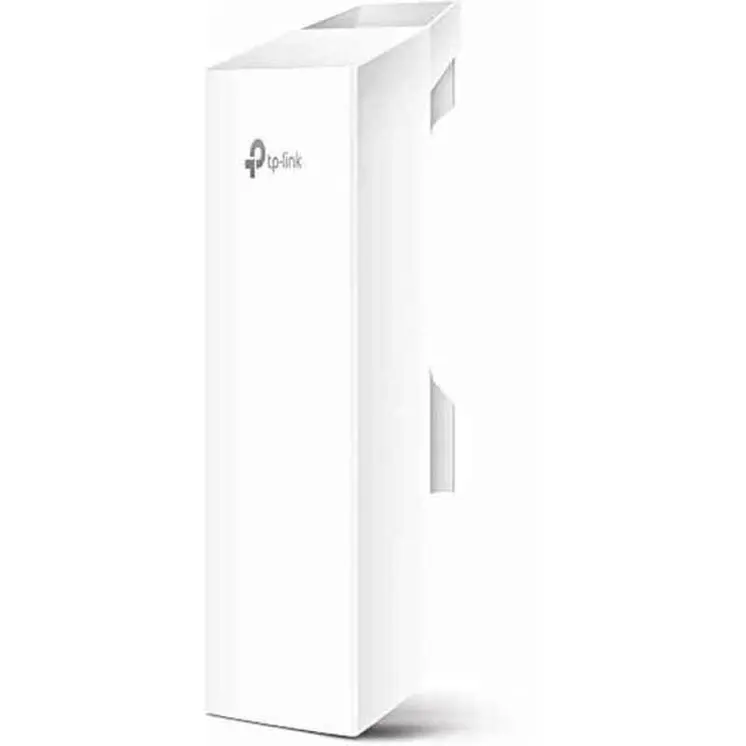

Access point TP-Link CPE210 2.4 GHz 300N 27 dBm 9 dBi PoE White at an unbeatable price.
- Colour: White
- Type: Access point
- AC input voltage: 100 - 240 V
- Connections:
- PoE
- Ethernet LAN
- USB
- RJ45
- PoE x 1
- Self-assembly Kit: Yes
- Speed:
- Frequency:
- 2,4 GHz - 5 GHz
- 2,4 GHz
- 2,4GHz
- 50 - 60 Hz
- 560 Hz
- Product with plug: Yes
- Type of plug: Plug EU
- IP rating: IPX5
- Flash Memory:
- Characteristics: LED indicator
- Memory Type: DDR3 SDRAM
- Aspect ratio: 16:9
- Internal Memory:
- Year: 2014
- Voltage: 24 V
- Power supply: CA cable
- Number of pieces: 4 Pieces
- Hard Drive: 8 GB
- AC input: 100-240 V
- Operating System: No
- Remote control: No
- Working range for humidity: 10 % - 90 %
- Compatible: PC
- Approx. temperature: -40º / 70º
- Safety: IGMP
- Processor Family:
- Nuclei: 1 core
TP-Link’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros level chipsets, high gain antennas and high
quality material, specially designed enclosure, and PoE power supply, CPE210 is
specially designed for outdoor use and can operate flawlessly in almost any climate,
with operating temperatures ranging from -40℃ (-40℉) to +70℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain and lower noise interference
5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.
TP-Link MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily
manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery,
status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
- 2.4 GHz: Y
- 5 GHz: N
- Maximum data transfer rate: 300 Mbit/s
- Frequency band: 2.4 - 2.483 GHz
- Networking standards: IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
- Automatic channel selection: Y
- Automatic channel scanning: Y
- MIMO: Y
- VLAN support: Y
- Dynamic Frequency Selection (DFS): Y
- Maximum outdoor range: 5000 m
- Security algorithms: AES,TKIP,WPA,WPA-PSK,WPA2,WPA2-PSK
- MAC address filtering: Y
- IGMP snooping: Y
- Web-based management: Y
- Management platform: Pharos Control
- Ethernet LAN (RJ-45) ports: 2
- Power over Ethernet (PoE): Y
- Input voltage: 100 - 240 V
- Input frequency: 50/60 Hz
- Output voltage: 24 V
- Output current: 0.25 A
- Placement: Pole
- Product colour: White
- International Protection (IP) code: IPX5
- Reset button: Y
- LED indicators: Status
- Certification: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
CE, FCC, RoHS
- Antenna type: Internal
- Antenna direction type: Directional
- Antenna gain level (max): 9 dBi
- Polarization: Dual polarization
- Built-in processor: Y
- Processor model: Qualcomm Atheros
- Processor frequency: 560 MHz
- Processor architecture: MIPS 74Kc
- Flash memory: 8 MB
- Internal memory: 64 MB
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): -30 - 70 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 5 - 95%
- Width: 224 mm
- Depth: 79 mm
- Height: 60 mm
- Number of products included: 1 pc(s)
- Cables included: AC
- Mounting kit: Y
