If you're passionate about
IT and electronics, like being up to date on technology and don't miss even the slightest details, buy

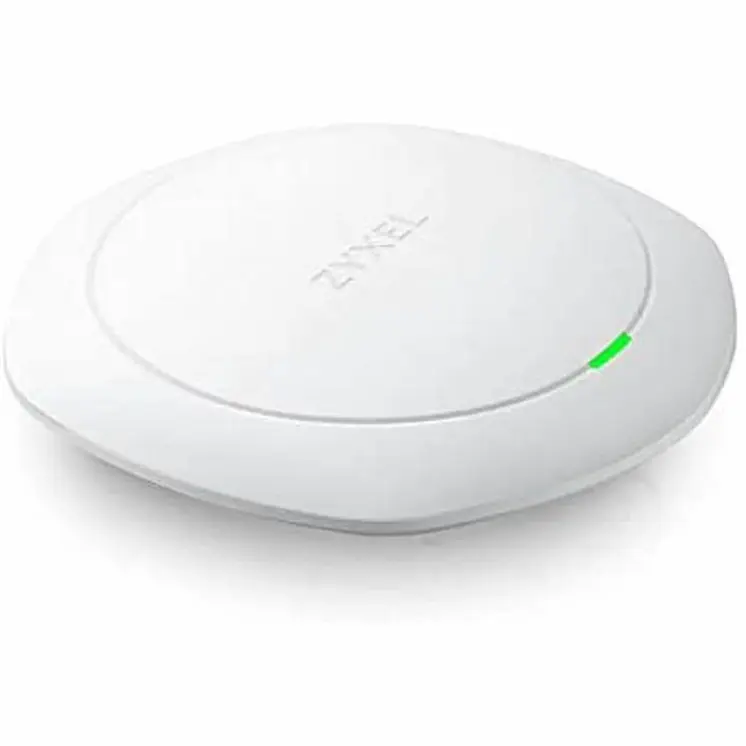

Wifi Antenna ZyXEL WAC6303D-S-EU0101F White at an unbeatable price.
- Colour: White
- Year: 2018
- Voltage: 12 V
- Ports: 2
- Height: 55 cm
- Connections:
- AC input: 100-240 V
- Frequency:
- Amperage: 2 A
- Working range for humidity: 10 % - 90 %
- Connectors: Kensington
- Power supply: CC
- Approx. temperature: -40º / 70º
Networking administrators managing busy venues must understand how visitors longed for WiFi and how challenging it is to meet the demands within limited budgets.
Zyxel brings affordable and triple-performance 3x3:3 MU-MIMO access point WAC6303D-S which is built with Smart antenna to mitigate co-channel interference in high-density environment. And its embedded BLE Beacon provides insight into your consumers, WAC6303D-S not only resolves the challenge today it thinks for the ever-growing mobility demands tomorrow.
MU-MIMO, New Definition of Wi-Fi
Stepping up from 802.11ac, the second generation Wave 2 technology introduces Multi-User MIMO (MU-MIMO). This is an important WiFi development that enables an AP to communicate with multiple clients at a time offering 300% performance for a 3x3 AP.
Next Generation Transmit Beamforming benefits overall networking
Transmit Beamforming (TxBF) technology is another key to implement reliable high-density Wi-Fi connection. It increases overall network transmission data rates, which benefits not only MU-MIMO clients but also all existing clients.
Optimal Wireless Experience
WAC6303D-S features Smart antenna technology which is proven able to mitigate co-channel interference, and adaptively adjust antenna patterns to fit in high-density application.
Built for Superior performance
The WAC6303D-S is built with a high-efficiency antenna module, premium power amplifiers and low-noise elements delivering superior wireless performance over other Wave 2 access points on the market.
Optimized wireless experience with advanced features
To provide outstanding performance in crowded environment, WAC6303D-S features 3G/4G interference immunity, excellent receive sensitivity and DCS, which enlarge its service coverage for more clients and better quality of connection.
Unified access point- Fits all businesses
Stay standalone mode if you’re a start-up, needing just few APs; convert to controller-managed mode when business grows up, requiring hundreds of APs.
- 2.4 GHz: Y
- 5 GHz: Y
- Maximum data transfer rate: 1300 Mbit/s
- Wi-Fi data rate (max): 1300 Mbit/s
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Throughput data rate: 1600 Mbit/s
- Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3au,IEEE 802.3az,IEEE 802.3u
- Channel bandwidth: 80 MHz
- MIMO: Y
- MIMO type: Multi User MIMO
- Modulation: 16-QAM,64-QAM,256-QAM,BPSK,CCK,DBPSK,DBQSK,QPSK
- Wi-Fi Multimedia(WMM)/(WME): Y
- VLAN support: Y
- Maximal-Ratio Combining (MRC): Y
- Maximum Likelihood Detection (MLD): Y
- Cyclic Shift Diversity (CSD): Y
- Quality of Service (QoS) support: Y
- Receiver sensitivity: -103 dBm
- Security algorithms: 802.1x RADIUS,WPA,WPA-Enterprise,WPA2,WPA2-Enterprise,WPA2-PSK
- MAC address filtering: Y
- Number of SSID supported: 16
- DHCP client: Y
- Management protocols: SNMP v2c/v3
- Ethernet LAN (RJ-45) ports: 2
- DC-in jack: Y
- Power over Ethernet (PoE): Y
- Input voltage: 100 - 240 V
- Input frequency: 50/60 Hz
- Output voltage: 12 V
- Output current: 2 A
- Placement: Ceiling, Wall
- Product colour: White
- Cable lock slot: Y
- Cable lock slot type: Kensington
- Internal: N
- Antenna gain level (max): 4 dBi
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): -20 - 60 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 10 - 90%
- Width: 211 mm
- Depth: 223 mm
- Height: 39 mm
- Weight: 800 g
- Mounting kit: Y
- Package width: 251 mm
- Package depth: 247 mm
- Package height: 55 mm
- Package weight: 1.04 kg
