If you're passionate about
IT and electronics, like being up to date on technology and don't miss even the slightest details, buy
Switch UBIQUITI ES-8-150W at an unbeatable price.
- Product with plug: Yes
- Type of plug: Plug EU
- Type: Switch
- Speed: 10/100/1000 Mbps
- Ports:
- Colour: Black
- Material: Copper
- Characteristics:
- Wall mounting
- LED indicator
- Connections:
- Holder: Multi-support
- Voltage:
- Number of slots: 2
- Frequency: 50 - 60 Hz
- Power: 150 W
- Remote control: No
- Weight: 1,7 kg
- Power supply: Iincluded
- Safety: IGMP

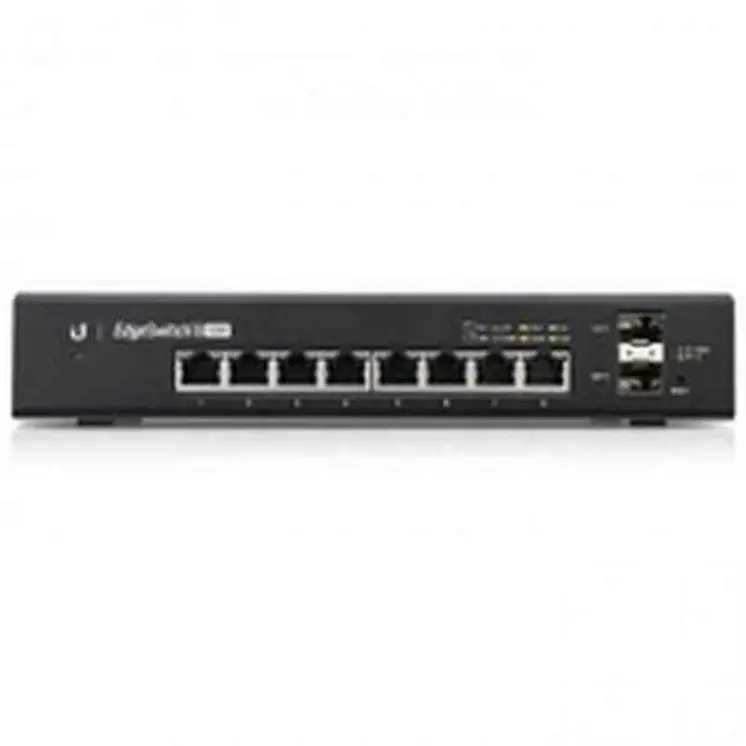

The fanless EdgeSwitch™ 8 is a fully managed, high-performance, PoE+ Gigabit switch. It delivers powerful performance and intelligent switching with its 10 independent switching ports. A DC input option is included for flexibility.
Gigabit Connectiviy
The compact EdgeSwitch features a versatile port configuration: eight Gigabit Ethernet ports that support PoE+ and two SFP ports for fiber connectivity. It can be placed on a desktop or mounted on a wall.
Convenient PoE+ Support
Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure.
Optical Fiber Backhaul
The EdgeSwitch provides fiber connectivity options for your growing networks. Two SFP ports provide uplinks of up to 1 Gbps.
Powerful Performance
The EdgeSwitch delivers robust switching performance with its total, non-blocking throughput of up to 10 Gbps.
Switching Capacity
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
- Switch type: Managed
- Quality of Service (QoS) support: Y
- Web-based management: Y
- System event log: Y
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 2
- Console port: RJ-45
- Power connector: DC-in jack
- Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ak,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
- 10G support: N
- Copper ethernet cabling technology: 10BASE-T,100BASE-T,1000BASE-T
- Port mirroring: Y
- Flow control support: Y
- Link aggregation: Y
- Broadcast storm control: Y
- Spanning tree protocol: Y
- Active link detection: Y
- VLAN support: Y
- Virtual LAN features: Tagged VLAN,Port-based VLAN
- Number of VLANs: 255
- MAC address table: 8000 entries
- Switching capacity: 20 Gbit/s
- Throughput: 14.88 Mpps
- Number of trunks: 8
- Jumbo frames support: Y
- DHCP features: DHCP server
- Access Control List (ACL): Y
- Access Control List (ACL) rules: 100
- IGMP snooping: Y
- Security algorithms: SNMP,SSH,SSH-2
- MAC address filtering: Y
- SSH/SSL support: Y
- Authentication: Guest VLAN, Port-based authentication
- Multicast support: Y
- Stackable: N
- Product colour: Black
- LED indicators: Activity, LAN, Link, PoE, Speed
- Wall mountable: Y
- Certification: CE, FCC, IC
- Power supply included: Y
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 150 W
- Power over Ethernet (PoE): Y
- Power over Ethernet plus (PoE+) ports quantity: 8
- Power over Ethernet (PoE) voltage range: 50 - 75 V
- Power over Ethernet (PoE) power per port: 34.2 W
- Operating temperature (T-T): -25 - 60 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 204 mm
- Depth: 235 mm
- Height: 43 mm
- Weight: 1.72 kg
- Mounting brackets included: Y
- Input voltage: 42 - 56 V
